How to create network zone to block bulk IP addresses in Endpoint Manager

Introduction : Endpoint Manager  has a feature to block Bulk IPv4 Addresses given within a range .In the Network Zone ,Which can block the request of particular IPv4 address within a list.

STEP [1] :

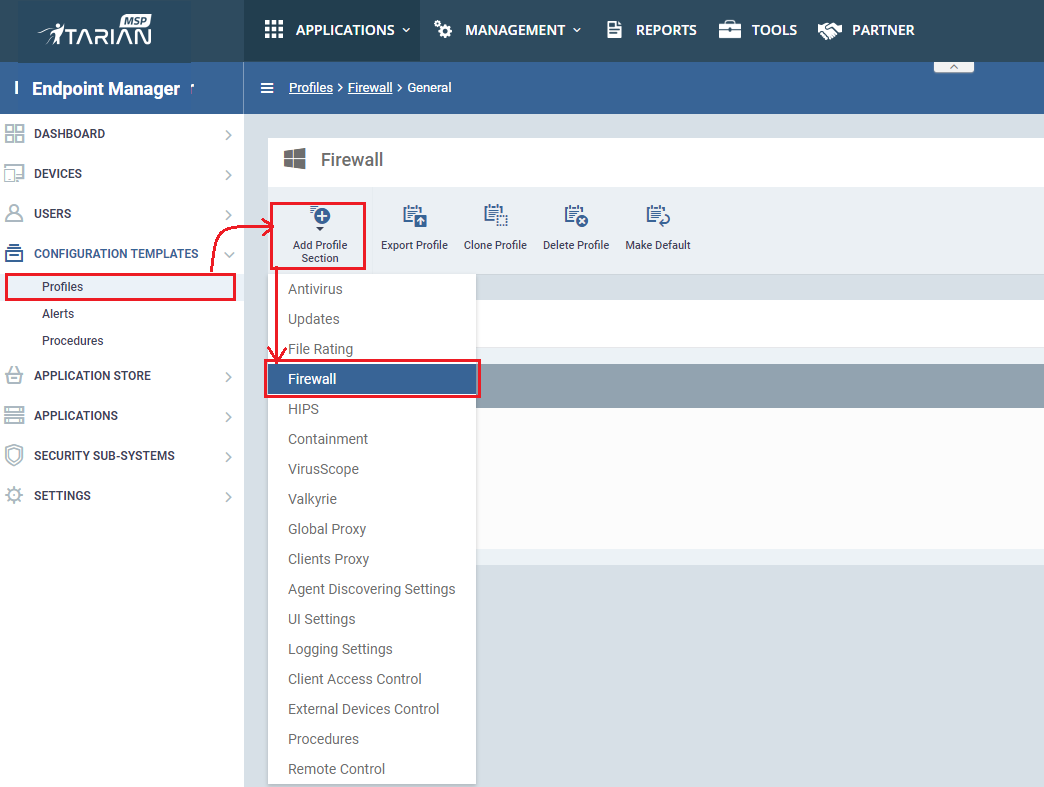

Go to Endpoint Manager → CONFIGURATION TEMPLATES → Profiles

Select PROFILE associated with device and choose FIREWALL from the drop down

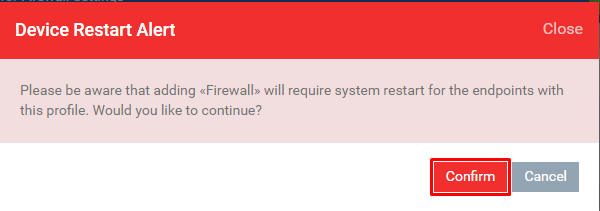

Click on 'CONFIRM'

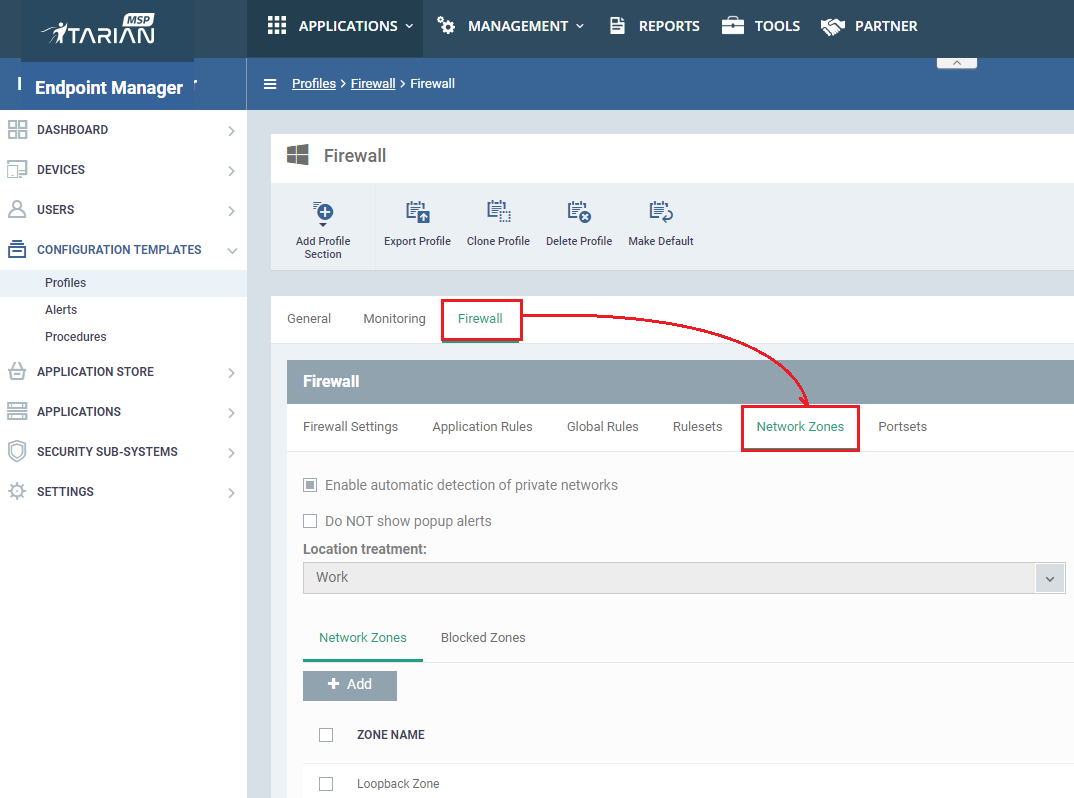

STEP [2] :In FIREWALL,Click on  "Network Zones".

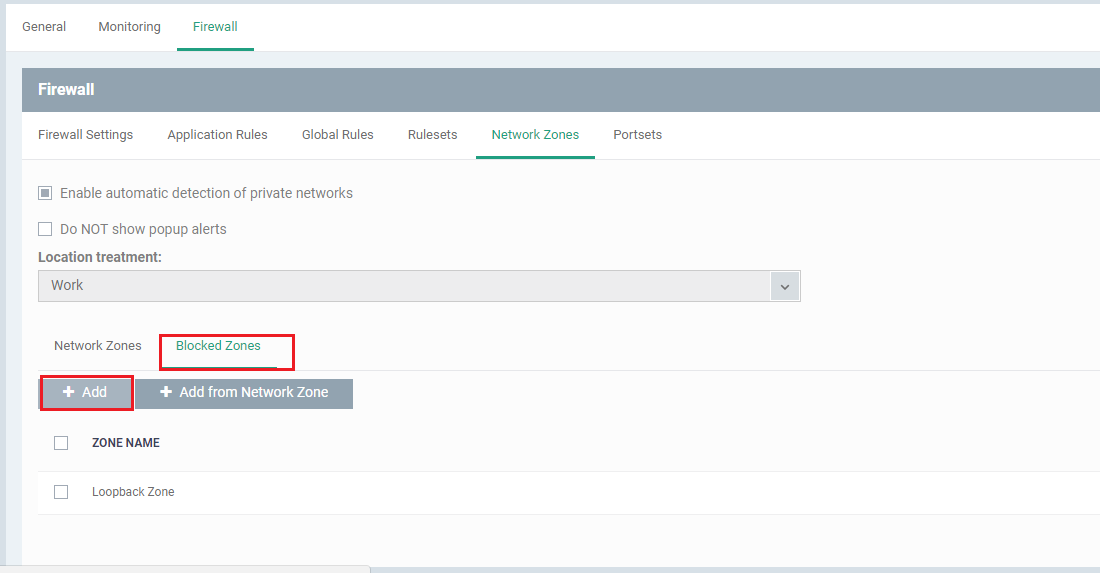

STEP [3] : Now Select Blocked Zones and Click on "Add" to add the IP Addresses in the new network zone

STEP [4] : Now dialog box with name "Address" will be displayed.

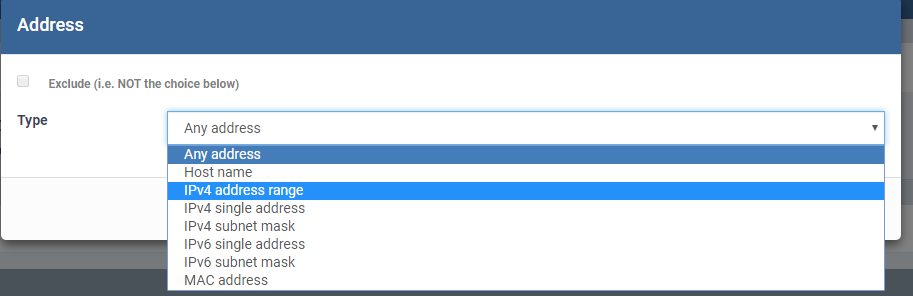

 In that select 'Type' drop-down box and click on "IPv4 Address Range" as shown below.

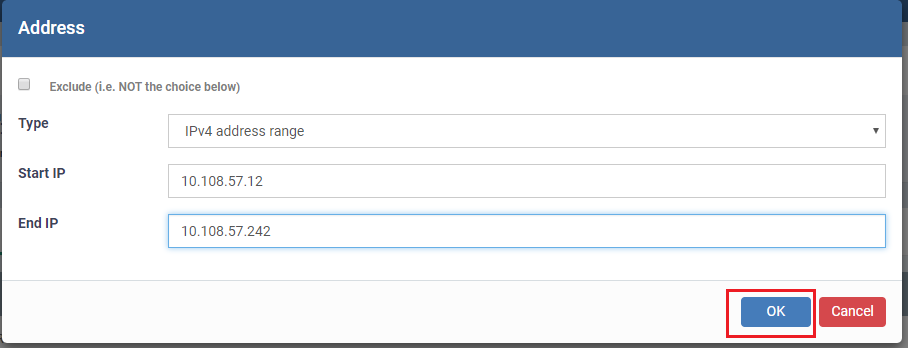

STEP [4] : Specify values of IPv4 addresses  between  'Start IP' and 'End IP' in text boxes.

For Example :

Start IP : 10.108.57.12

End IP : 10.108.57.242

Here the IPv4 Addresses between 10.108.57.12 to 10.108.57.242 are blocked from network.

Finally, press OK and click on "Save" to apply the settings.
